General Specifications

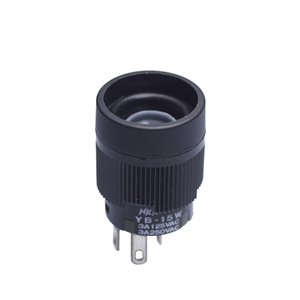

| Part No. | YB15WCKW01 |
|---|---|
| Description | Short Body Illuminated Pushbutton Switches |
| Name | ILLUMINATED PUSHBUTTONS |
| Series | YB |
| Poles | SPDT |
| Circuits | On-(On) |
| Rating | 3 | Illumination | Illuminated |
| Mounting Type | Panel Mount |
| Keywords | Panel Seal,Supplied with mounting nut and o-ring AT089 |
| Contact Finish | Silver |
| Actuator Type | Round Cap(Optional Accessory) |
| Panel Cutout Dimensions | 16Dia. |
| Termination Style | Solder Lug |
| Illumination Type | Lamps(Optional Accessory) |
| IP | IP65 |
Accessories
- Round Solid Cap/White White:AT3002BB
- Round Solid Cap/Red White:AT3002CB
- Round Solid Cap/Yellow White:AT3002EB
- Round Solid Cap/Green White:AT3002FB
- Round Solid Cap/Blue White:AT3002GB
- Rouon Cap for Bright LED & Bicolor/Clear White:AT3005JB
- Rouon Cap for Bright LED & Bicolor/Clear Red:AT3005JC
- Rouon Cap for Bright LED & Bicolor/Clear Amber:AT3005JD
- Rouon Cap for Bright LED & Bicolor/Clear Green:AT3005JF
- Round Spot Illuminated Cap with Built-in LED/Red 2V:AT3011C02JA
- Round Spot Illuminated Cap with Built-in LED/Red 2V:AT3011C02JB
- Round Spot Illuminated Cap with Built-in LED/Red 2V:AT3011C02JC
- Round Spot Illuminated Cap with Built-in LED/Red 2V:AT3011C02JE
- Round Spot Illuminated Cap with Built-in LED/Red 2V:AT3011C02JF
- Round Spot Illuminated Cap with Built-in LED/Red 5V:AT3011C05JA
- Round Spot Illuminated Cap with Built-in LED/Red 5V:AT3011C05JB
- Round Spot Illuminated Cap with Built-in LED/Red 5V:AT3011C05JC
- Round Spot Illuminated Cap with Built-in LED/Red 5V:AT3011C05JE
- Round Spot Illuminated Cap with Built-in LED/Red 5V:AT3011C05JF
- Round Spot Illuminated Cap with Built-in LED:AT3011C12JA
- Round Spot Illuminated Cap with Built-in LED/Red 12V:AT3011C12JB
- Round Spot Illuminated Cap with Built-in LED/Red 12V:AT3011C12JC
- Round Spot Illuminated Cap with Built-in LED/Red 12V:AT3011C12JE
- Round Spot Illuminated Cap with Built-in LED/Red 12V:AT3011C12JF
- Round Spot Illuminated Cap with Built-in LED/Red 24V:AT3011C24JA
- Round Spot Illuminated Cap with Built-in LED/Red 24V:AT3011C24JB
- Round Spot Illuminated Cap with Built-in LED/Red 24V:AT3011C24JC
- Round Spot Illuminated Cap with Built-in LED/Red 24V:AT3011C24JE
- Round Spot Illuminated Cap with Built-in LED/Red 24V:AT3011C24JF
- Round Spot Illuminated Cap with Built-in LED/Red Green 2V:AT3011CF02JA
- Round Spot Illuminated Cap with Built-in LED/Red Green 2V:AT3011CF02JB
- Round Spot Illuminated Cap with Built-in LED/Red Green 2V:AT3011CF02JC
- Round Spot Illuminated Cap with Built-in LED/Red Green 2V:AT3011CF02JE
- Round Spot Illuminated Cap with Built-in LED/Red Green 2V:AT3011CF02JF
- Round Spot Illuminated Cap with Built-in LED/Red Green 5V:AT3011CF05JA
- Round Spot Illuminated Cap with Built-in LED/Red Green 5V:AT3011CF05JB
- Round Spot Illuminated Cap with Built-in LED/Red Green 5V:AT3011CF05JC
- Round Spot Illuminated Cap with Built-in LED/Red Green 5V:AT3011CF05JE
- Round Spot Illuminated Cap with Built-in LED/Red Green 5V:AT3011CF05JF
- Round Spot Illuminated Cap with Built-in LED/Red Green 12V:AT3011CF12JA
- Round Spot Illuminated Cap with Built-in LED/Red Green 12V:AT3011CF12JB
- Round Spot Illuminated Cap with Built-in LED/Red Green 12V:AT3011CF12JC
- Round Spot Illuminated Cap with Built-in LED/Red Green 12V:AT3011CF12JE
- Round Spot Illuminated Cap with Built-in LED/Red Green 12V:AT3011CF12JF
- Round Spot Illuminated Cap with Built-in LED /Red Green24V:AT3011CF24JA
- Round Spot Illuminated Cap with Built-in LED /Red Green24V:AT3011CF24JB
- Round Spot Illuminated Cap with Built-in LED /Red Green24V:AT3011CF24JC
- Round Spot Illuminated Cap with Built-in LED /Red Green24V:AT3011CF24JE
- Round Spot Illuminated Cap with Built-in LED /Red Green24V:AT3011CF24JF
- Round Spot Illuminated Cap with Built-in LED/Amber 2V:AT3011D02JA
- Round Spot Illuminated Cap with Built-in LED/Amber 2V:AT3011D02JB
- Round Spot Illuminated Cap with Built-in LED/Amber 2V:AT3011D02JC
- Round Spot Illuminated Cap with Built-in LED/Amber 2V:AT3011D02JE
- Round Spot Illuminated Cap with Built-in LED/Amber 2V:AT3011D02JF
- Round Spot Illuminated Cap with Built-in LED/Amber 5V:AT3011D05JA
- Round Spot Illuminated Cap with Built-in LED/Amber 5V:AT3011D05JB
- Round Spot Illuminated Cap with Built-in LED/Amber 5V:AT3011D05JC
- Round Spot Illuminated Cap with Built-in LED/Amber 5V:AT3011D05JE
- Round Spot Illuminated Cap with Built-in LED/Amber 5V:AT3011D05JF
- Round Spot Illuminated Cap with Built-in LED/Amber 12V:AT3011D12JA
- Round Spot Illuminated Cap with Built-in LED/Amber 12V:AT3011D12JB
- Round Spot Illuminated Cap with Built-in LED/Amber 12V:AT3011D12JC
- Round Spot Illuminated Cap with Built-in LED/Amber 12V:AT3011D12JE
- Round Spot Illuminated Cap with Built-in LED/Amber 12V:AT3011D12JF
- Round Spot Illuminated Cap with Built-in LED/Amber 24V:AT3011D24JA
- Round Spot Illuminated Cap with Built-in LED/Amber 24V:AT3011D24JB
- Round Spot Illuminated Cap with Built-in LED/Amber 24V:AT3011D24JC
- Round Spot Illuminated Cap with Built-in LED/Amber 24V:AT3011D24JE
- Round Spot Illuminated Cap with Built-in LED/Amber 24V:AT3011D24JF
- Round Spot Illuminated Cap with Built-in LED/Green 2V:AT3011F02JA
- Round Spot Illuminated Cap with Built-in LED/Green 2V:AT3011F02JB
- Round Spot Illuminated Cap with Built-in LED/Green 2V:AT3011F02JC
- Round Spot Illuminated Cap with Built-in LED/Green 2V:AT3011F02JE
- Round Spot Illuminated Cap with Built-in LED/Green 2V:AT3011F02JF
- Round Spot Illuminated Cap with Built-in LED/Green 5V:AT3011F05JA
- Round Spot Illuminated Cap with Built-in LED/Green 5V:AT3011F05JB
- Round Spot Illuminated Cap with Built-in LED/Green 5V:AT3011F05JC
- Round Spot Illuminated Cap with Built-in LED/Green 5V:AT3011F05JE
- Round Spot Illuminated Cap with Built-in LED/Green 5V:AT3011F05JF
- Round Spot Illuminated Cap with Built-in LED/Green 12V:AT3011F12JA
- Round Spot Illuminated Cap with Built-in LED/Green 12V:AT3011F12JB
- Round Spot Illuminated Cap with Built-in LED/Green 12V:AT3011F12JC
- Round Spot Illuminated Cap with Built-in LED/Green 12V:AT3011F12JE
- Round Spot Illuminated Cap with Built-in LED/Green 12V:AT3011F12JF
- Round Spot Illuminated Cap with Built-in LED /Green24V:AT3011F24JA
- Round Spot Illuminated Cap with Built-in LED /Green24V:AT3011F24JB
- Round Spot Illuminated Cap with Built-in LED /Green24V:AT3011F24JC
- Round Spot Illuminated Cap with Built-in LED /Green24V:AT3011F24JE
- Round Spot Illuminated Cap with Built-in LED /Green24V:AT3011F24JF
- Round Cap for Super Bright LED/Clear White:AT3015JB
- Dust Cover/YB:AT4115
- Spring Loaded Protective Guard/YB:AT4175
- O-ring for Panel Seal with AT4115:AT541
- Incandescent Lamp 12V/KB,YB:AT611-12V
- Incandescent Lamp 28V/KB,YB:AT611-28V
- Incandescent Lamp 5V/KB,YB:AT611-5V
- 6-element Bicolor LED/Clear Green/2V:AT621CF02
- 6-element Bicolor LED/Clear Green/5V:AT621CF05
- 6-element Bicolor LED/Clear Green/12V:AT621CF12
- 6-element Bicolor LED/Clear Green/24V:AT621CF24
- Super Bright Single Element LED/Blue:AT625G
- Bright Double Element LED/Red:AT628C
- Bright Double Element LED/Amber:AT628D
- Bright Double Element LED/Green:AT628F
- Super Bright Single Element LED/White:AT631B
- Super Bright Single Element LED/Green:AT632F
- Bright 2- or 4-Element LED/Red 5V:AT634C05
- Bright 2- or 4-Element LED/Red 12V:AT634C12
- Bright 2- or 4-Element LED/Red 24V:AT634C24
- Bright 2- or 4-Element LED/Amber 5V:AT634D05
- Bright 2- or 4-Element LED/Amber 12V:AT634D12
- Bright 2- or 4-Element LED/Amber 24V:AT634D24
- Bright 2- or 4-Element LED/Green 5V:AT634F05
- Bright 2- or 4-Element LED/Green 12V:AT634F12
- Bright 2- or 4-Element LED/Green 24V:AT634F24
